Electroconductive Polymers PC

We make our permanent carbon black electroconductive polymers with high-conductivity carbon black and virgin PC resin. We created these materials for the semiconductor packaging industry.

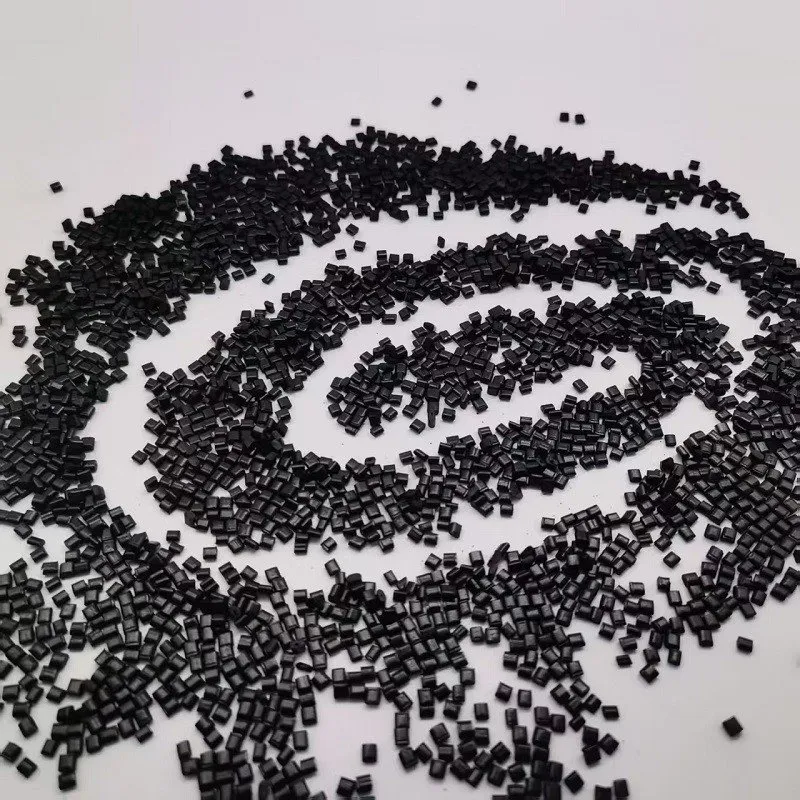

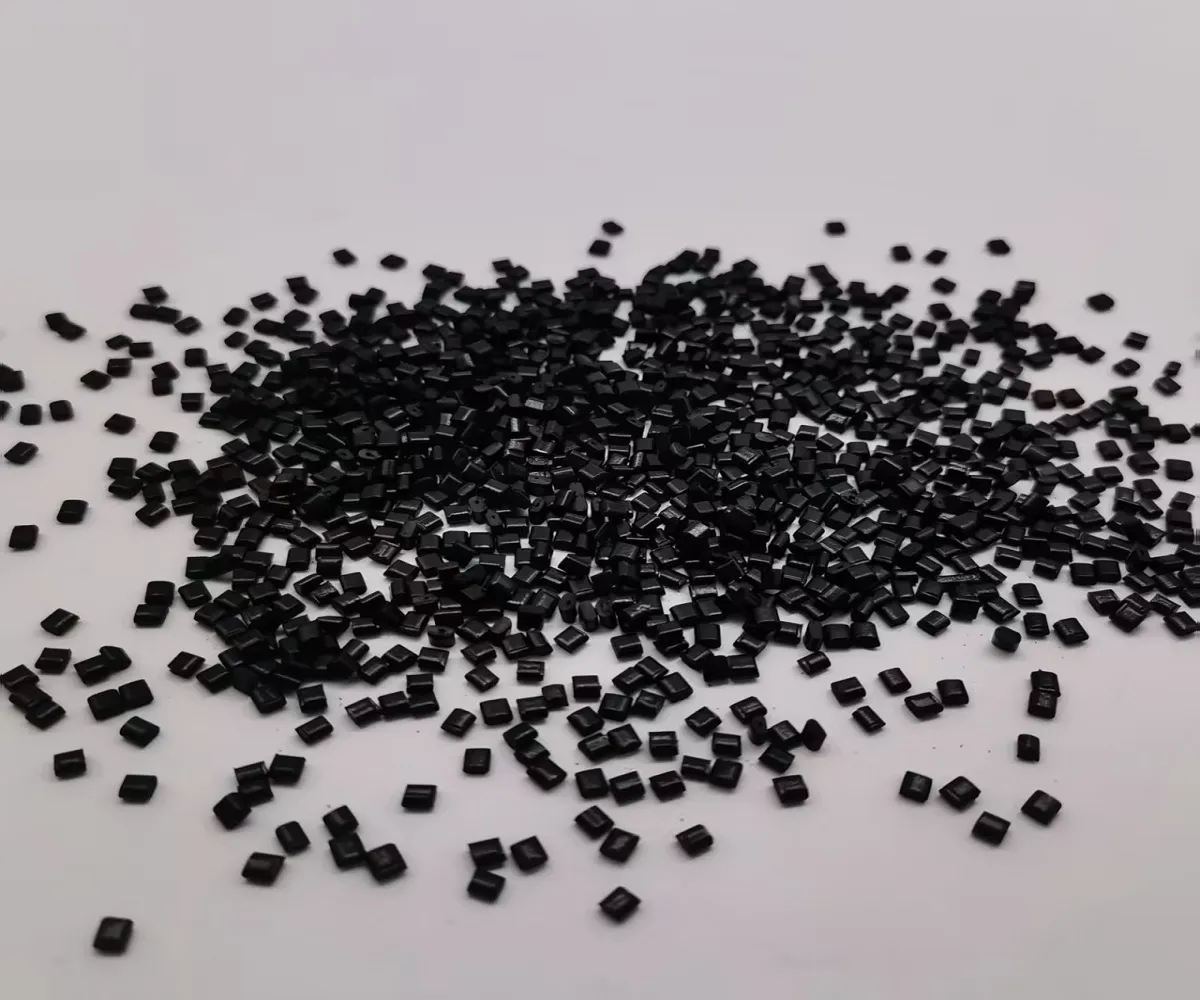

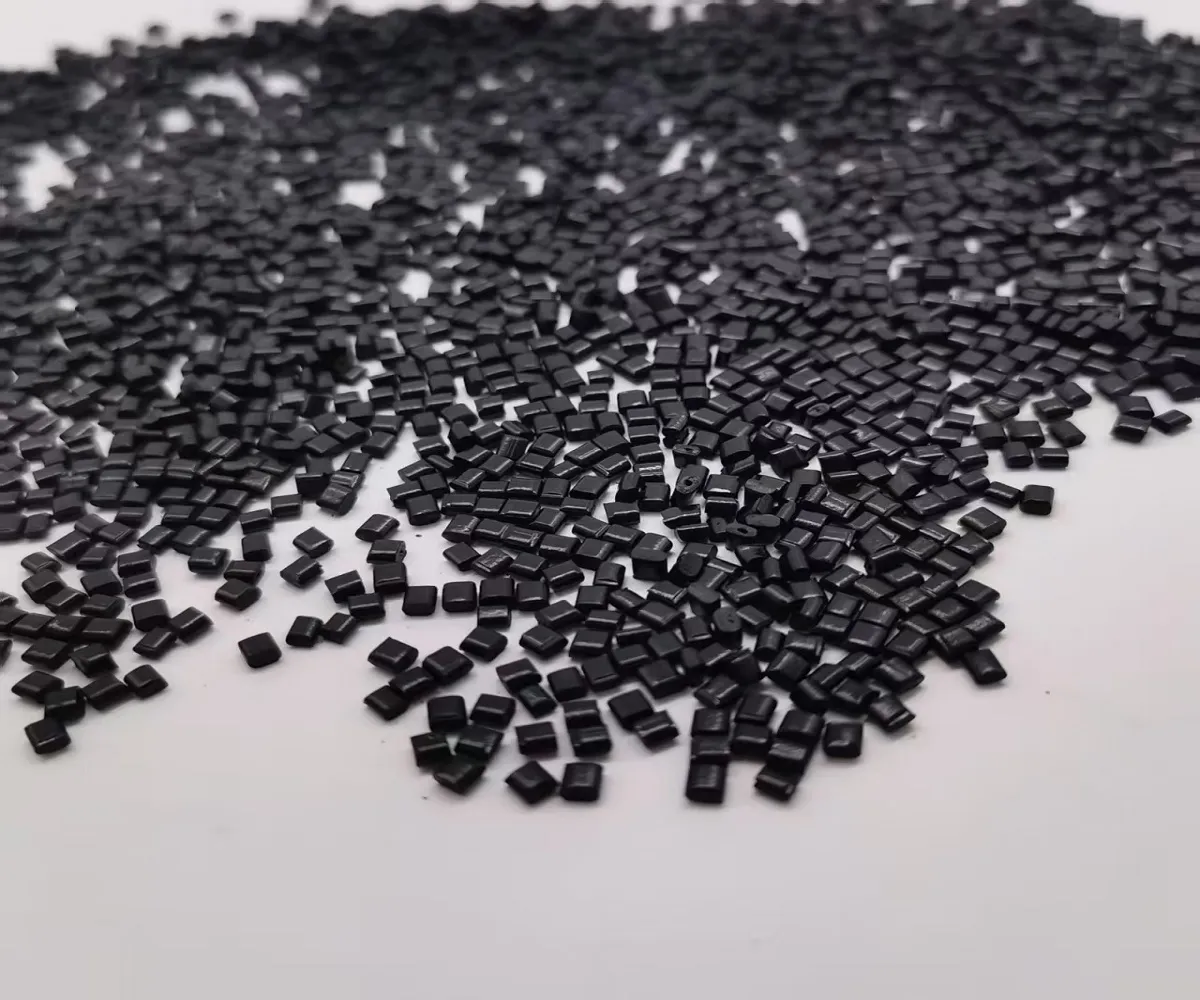

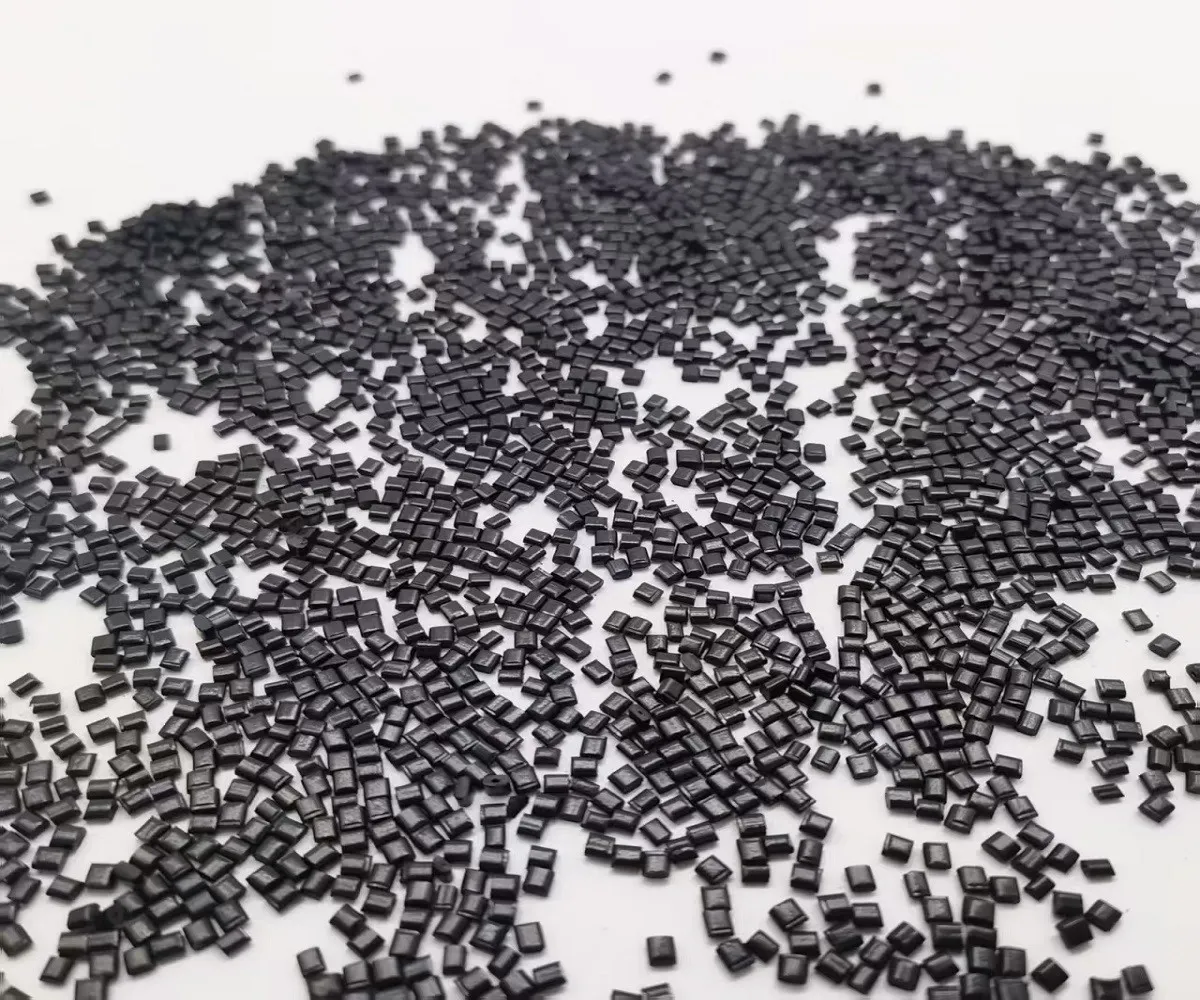

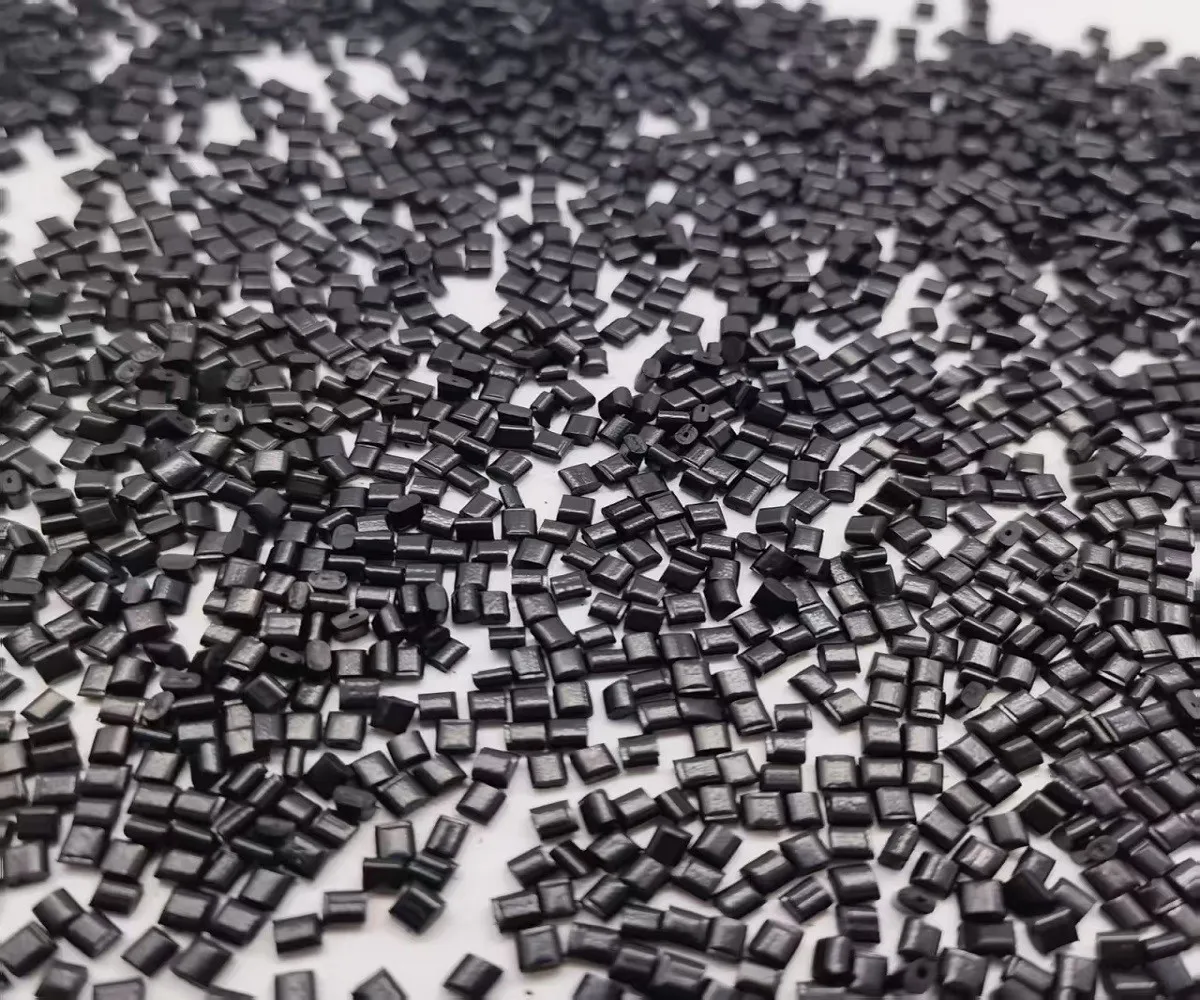

This conductive polycarbonate appears as black granules. We mainly use it to make IC trays, also known as JEDEC trays. It keeps stable conductivity between 10³–10⁵ Ω/sq.

It works well as a professional IC tray material and JEDEC tray material. Meets strict needs for storing and transporting semiconductor components. The material uses a carbon black system so it only comes in black, This helps keep conductivity steady and makes every batch consistent.

This conductive carbon black PC polymer is easy to process and performs reliably. It protects semiconductor components and prevents static damage. It follows all JEDEC tray standards. Semiconductor manufacturers all over the world trust and use this material.

• It has permanent conductivity. High-purity carbon black and virgin PC form a stable conductive network. The surface resistivity stays at 10³–10⁵ Ω/sq for a long time.
• In black uniform granules. It is easy to process. only comes in black to keep conductivity stable.
• It flows well during injection molding. works well for making complex IC and JEDEC trays. It reduces short shots and flow marks.
• The molding shrinkage is stable. Trays made from this material will not warp, deform, or have size problems.
• It can resist heat up to 120°C. It will not soften or lose performance at this temperature.
• It uses pure virgin PC resin. There are no impurities or recycled materials. This makes the material strong and stable.
• It works well with standard PC processing equipment. You do not need to extra adjust your production line.

■ Our permanent carbon black conductive PC provides a good balance of conductivity, processability, and reliability. It is a popular option for IC tray material and JEDEC tray material.

■ The permanent conductivity can remove static charges and stop dust from sticking. It protects sensitive chips from ESD damage. It stays stable even in dry environments, unlike some temporary conductive materials.

■ Good fluidity and stable shrinkage solve many common production problems. These problems include difficult filling, warping, and uneven sizes. Each tray meets strict JEDEC size standards. It works well on automated lines. It also reduces defect rates and saves production costs.

■ Virgin PC makes the material stronger and more durable than recycled materials. The black color avoids interference from color additives. This keeps quality consistent. The material can work at 120°C, so it supports high-temperature semiconductor processes.

• We make this material for IC tray and JEDEC tray production. It is widely used in semiconductor static-control applications.
• JEDEC tray production: Standard trays for ICs, chips, and sensitive parts.
• IC tray manufacturing: Trays for BGA, QFN, and other chip packages that need precise structures.
• Semiconductor component storage: Static-safe storage in cleanrooms, workshops, and warehouses.
• Automated production lines: Works with robotic arms and conveyor systems.
• High-end semiconductor areas: Automotive electronics, consumer electronics, industrial control, and other high-precision uses.
